| न्यूनतम आदेश मात्रा: | 200 |
| कीमत: | 1~50USD/Metrer |
| मानक पैकेजिंग: | 100 मीटर प्रति रोल |
| वितरण अवधि: | 10 |
| आपूर्ति क्षमता: | 20 मी/माह |

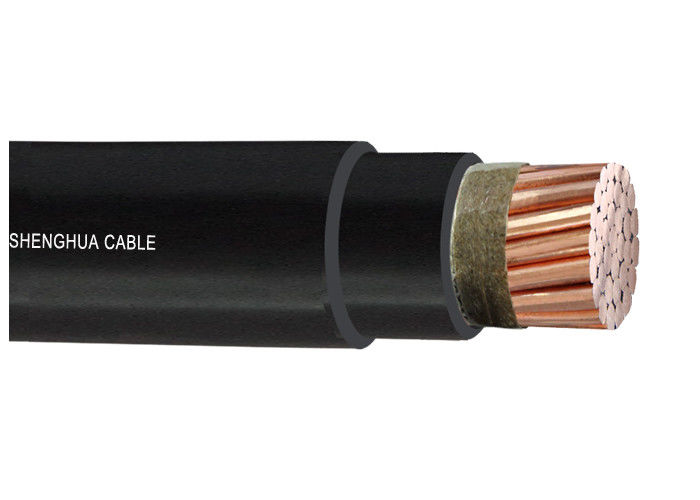

Copper conductor With Mica-tape Fire Resistant Cable Using for translate the electric
Standards: BS 7846; IEC 60331; BS 6387
Construction: Cu/Mica/XLPE/LSZH/SWA/LSZH
(1) Conductor: Plain annealed copper (class 2, normal
stranded or compact stranded)
(2) Fire barrier: Mica tape
(3) Insulation: XLPE
(4) Filler, binder and inner covering: PP, PET, LSZH
(5) Armour: Steel wire
(6) Outer sheath: LSZH
Cable identification
- Cores: Red, yellow, blue, black, green/yellow (by color tape, except green-yellow core)
- Outer sheath: orange or as order
Characteristics
- Voltage rate: 0.6/1kV
- Maximum conductor temperature: 900C in normal operation; 2500C in short-circuit for 5s max.
- Minimum bend radius: 12xD (twelve times overall diamerter of cable)
- Fire resistant: IEC 60331; BS 6387
- Flame retardant: BS EN 60332-1; IEC 60332-1
- Corrosive and acid gas: BS 7846; BS 50267-2-1; IEC 60754-1&2
Smoke emission: BS 7846; BS EN 50268-2; IEC 61034-2
Notes: * All conductor in accordance with IEC 60228. Compacted conductor (C.C) or non-compacted depend on order.
• Besides the above mentioned list we can also provide other sizes depending on customer’s requirement.
|
|
