जस्ती स्टील वायर नंगे कंडक्टर, एसीएसआर रेल कंडक्टर एएसटीएम ए 475 प्रमाणन

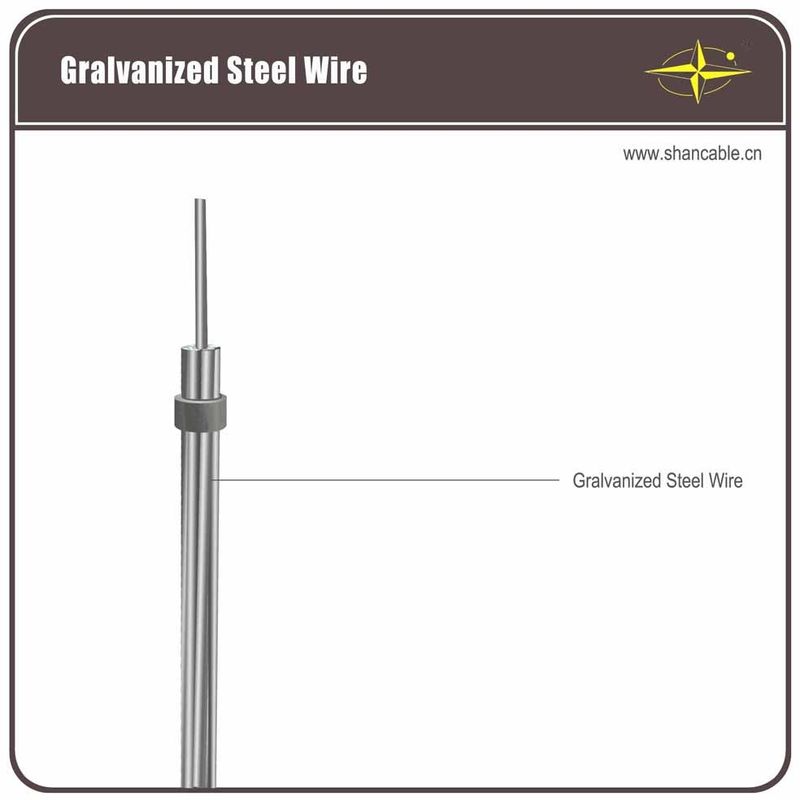

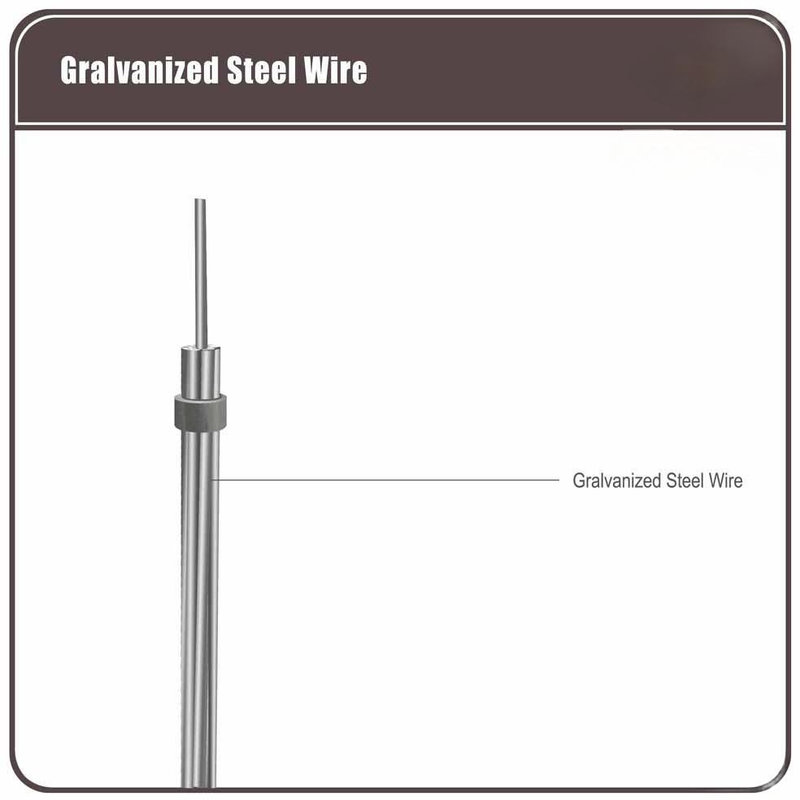

उत्पाद जस्ती इस्पात तार (जीएसडब्ल्यू) का उपयोग एसीएसआर (एल्यूमीनियम कंडक्टर स्टील रिफाइंस्ड) कंडक्टर के कॉर्ड के लिए किया जाता है।शेंगहुआ द्वारा निर्मित जीएसडब्ल्यू में उत्कृष्ट यांत्रिक गुण हैं, सबसे अच्छी कोटिंग की गुणवत्ता और सतह की अच्छी स्थिति।
| व्यास ((मिमी) | तन्य शक्ति (Mpa) | जस्ता का वजन ((g/m2) | ||||||
| 1.24 ~ 225 | 1340~1620 | 185 से 215 | ||||||
| 2.25 ~ 3.00 | 1310~1590 | 230 | ||||||
| 3.00~3.50 | 1290 से 1550 | 245 | ||||||
| 3.50 ~ 4.25 | 1290~1520 | 260 | ||||||
| 4.25 ~ 4.75 | 1290~1520 | 275 | ||||||
| 4.75 ~ 5.50 | 1290~1520 | 290 | ||||||
| तीव्रता स्तर | तार व्यास | मिन. तन्यता | न्यूनतम तनाव 1% | न्यूनतम विस्तार | न्यूनतम 360° की संख्या | परीक्षण का व्यास | ||
| शक्ति | विस्तार | प्रतिशत जब L=250 | मोड़ना | मंड्रिल | ||||
| मिमी | एमपीए | एमपीए | % | अनेक | ||||
| >1.24~2.25 | 1340 | 1170 | 3.0 | 16 | 1 | |||
| >2.25~2.75 | 1310 | 1140 | 3.0 | 16 | 1 | |||
| >2.75~3.00 | 1310 | 1140 | 3.5 | 16 | 1 | |||
| सामान्य | >3.00~3.50 | 1290 | 1100 | 3.5 | 14 | 1 | ||
| >3.50~4.25 | 1290 | 1100 | 4.0 | 12 | 1 | |||
| >4.25~4.75 | 1290 | 1100 | 4.0 | 12 | 1 | |||
| >4.75~5.50 | 1290 | 1100 | 4.0 | 12 | 1 | |||
| >1.24~2.25 | 1450 | 1310 | 2.5 | 16 | 3 | |||
| >2.25~2.75 | 1410 | 1280 | 2.5 | 16 | 3 | |||
| >2.75~3.00 | 1410 | 1280 | 3.0 | 16 | 4 | |||
| उच्च | >3.00~3.50 | 1410 | 1240 | 3.0 | 14 | 4 | ||
| >3.50~4.25 | 1380 | 1170 | 3.0 | 12 | 4 | |||
| >4.25~4.75 | 1380 | 1170 | 3.0 | 12 | 4 | |||
| >4.75~5.50 | 1380 | 1170 | 3.0 | 12 | 4 | |||
| >1.24~2.25 | 1620 | 1450 | 2.0 | 14 | 4 | |||
| >2.25~2.75 | 1590 | 1410 | 2.0 | 14 | 4 | |||
| >2.75~3.00 | 1590 | 1410 | 2.5 | 12 | 5 | |||
| बहुत उच्च | >3.00~3.50 | 1550 | 1380 | 2.5 | 12 | 5 | ||
| >3.50~4.25 | 1520 | 1340 | 2.5 | 10 | 5 | |||
| >4.25~4.75 | 1520 | 1340 | 2.5 | 10 | 5 | |||
| >4.75~5.50 | 1520 | 1270 | 2.5 | 10 | 5 | |||
|
|
एएसटीएम A475 | |||||||||
| तारों की संख्या | लगभग. स्ट्रैंड डाय. | सीमेंस | उच्च | अति उच्च | लगभग वजन | |||||
| /Dia. | मार्टिन ग्रेड | शक्ति का स्तर | शक्ति का स्तर | |||||||
| इंच | मिमी | kN | kN | kN | किलोग्राम/किमी | |||||
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 | ||||
| 3/3.05 | चौथाई | 6.35 | 13.523 | 21.040 | 29.981 | 174 | ||||
| 3/3.05 | चौथाई | 6.35 | - | - | - | 174 | ||||
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 | ||||
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 | ||||
| 3/419 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 | ||||
| 7/104 | 1/8 | 3.18 | 4.048 | 5.916 | 8.140 | 49 | ||||
| 7/132 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 | ||||
| 7/157 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 | ||||
| 7/165 | 3/16 | 4.76 | - | - | - | 118 | ||||
| 7/183 | 7/32 | 5.56 | 11.387 | 17.126 | 24.020 | 145 | ||||
| 7/2.03 | चौथाई | 6.35 | 14.012 | 21.129 | 29.581 | 181 | ||||
| 7/2.36 | 9/32 | 7.14 | 18.905 | 28.469 | 39.812 | 243 | ||||
| 7/2.64 | 5/16 | 7.94 | 23.798 | 35.586 | 49.820 | 305 | ||||
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 | ||||
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.040 | 68.503 | 407 | ||||
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 | ||||
| 7/4.19 | आधा | 12.70 | 53.823 | 83.627 | 119.657 | 768 | ||||
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 | ||||
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 | ||||
| 19/2.54 | आधा | 12.70 | 56.492 | 84.961 | 118.768 | 751 | ||||
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 | ||||
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 | ||||
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 | ||||
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 | ||||
| 19/5.08 | 1 | 25.40 | 209.066 | 325.610 | 464.839 | 2384 | ||||
| 37/3.63 | 1 | 25.40 | 205.508 | 319.827 | 456.832 | 3061 | ||||
| 37/4.09 | 11/8 | 28.58 | 262.000 | 407.457 | 581.827 | 4006 | ||||
| 37/4.55 | 11/4 | 31.75 | 324.720 | 505.318 | 721.502 | 4833 |
|
|||
| बीएस 183:1972 | ||||||||||
| संख्या | लगभग. | स्ट्रैंड का न्यूनतम टूटने का भार | लगभग वजन | |||||||
| तार/डिया। | स्ट्रैंड डाय | ग्रेड 350 | ग्रेड 480 | ग्रेड 700 | ग्रेड 850 | ग्रेड 1000 | ग्रेड 1150 | ग्रेड 1300 | ||
| मिमी | kN | kN | kN | kN | kN | kN | kN | किलोग्राम/किमी | ||
| 3/180 | 3.9 | 2.65 | 3.66 | - | - | - | - | - | 60 | |
| 3/2.65 | 5.7 | 5.80 | 7.95 | - | - | - | - | - | 130 | |
| 3/3.25 | 7.0 | 8.70 | 11.95 | - | - | - | - | - | 195 | |
| 3/400 | 8.6 | 13.20 | 18.10 | - | - | - | - | - | 295 | |
| 4/180 | 4.4 | 3.55 | 4.90 | - | - | - | - | - | 80 | |
| 4/2.65 | 6.4 | 7.70 | 10.60 | - | - | - | - | - | 172 | |
| 4/3.25 | 7.9 | 11.60 | 15.90 | - | - | - | - | - | 260 | |
| 4/4.00 | 9.7 | 17.60 | 24.10 | 35.20 | - | - | - | - | 390 | |
| 5/150 | 4.1 | 3.10 | 4.24 | 6.18 | - | - | - | - | 69 | |
| 5/180 | 4.9 | 4.45 | 6.10 | 8.90 | - | - | - | - | 95 | |
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.30 | - | - | - | - | 220 | |
| 5/3.25 | 8.8 | 14.50 | 19.90 | 29.00 | - | - | - | - | 320 | |
| 5/4.00 | 10.8 | 22.00 | 30.15 | 43.95 | - | - | - | - | 490 | |
| 7/0.56 | 1.7 | 0.60 | 0.83 | 1.20 | - | 1.70 | 1.98 | 2.24 | 14 | |
| 7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | - | 2.75 | 3.19 | 3.60 | 28 | |
| 7/0.85 | 2.6 | 1.39 | 1.90 | 2.80 | - | 3.95 | 4.57 | 5.15 | 31 | |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3.1 | - | 4.45 | 5.12 | 5.80 | 35 | |
| 7/100 | 3.0 | 1.92 | 2.64 | 3.85 | - | 5.50 | 6.32 | 7.15 | 43 | |
| 7/125 | 3.8 | 3.01 | 4.10 | 6.00 | - | 8.55 | 9.88 | 11.15 | 67 | |
| 7/140 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14.00 | 84 | |
| 7/RS* | 4.3 | 3.85 | 5.28 | 7.70 | 9.35 | 11.00 | 12.65 | 14.30 | 86 | |
| 7/160 | 4.8 | 4.90 | 6.75 | 9.85 | 11.95 | 14.10 | 16.20 | 18.30 | 110 | |
| 7/180 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.80 | 20.50 | 23.20 | 140 | |
| 7/2.00 | 6.0 | 7.70 | 10.55 | 15.40 | - | 22.00 | 25.30 | 28.60 | 170 | |
| 7/2.36 | 7.1 | 10.70 | 14.70 | 21.40 | - | 30.60 | 35.20 | 39.80 | 240 | |
| 7/2.65 | 8.0 | 13.50 | 18.50 | 27.00 | - | 38.60 | 44.40 | 50.20 | 300 | |
| 7/3.00 | 9.0 | 17.30 | 23.75 | 34.65 | - | 49.50 | 56.90 | 64.30 | 392 | |
| 7/3.15 | 9.5 | 19.10 | 26.20 | 38.20 | - | 54.55 | 62.75 | 70.90 | 430 | |
| 7/3.25 | 9.8 | 20.30 | 27.85 | 40.65 | - | 58.05 | 66.80 | 75.50 | 460 | |
| 7/3.65 | 11.0 | 25.60 | 35.15 | 51.25 | - | 73.25 | 84.20 | 95.20 | 570 | |
| 7/4.00 | 12.0 | 30.90 | 42.20 | 61.60 | - | 88.00 | 101.0 | 114.00 | 690 | |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.50 | - | 99.30 | 114.0 | 129.00 | 780 | |
| 7/4.75 | 14.0 | 43.40 | 59.45 | 86.80 | - | 124.0 | 142.7 | 161.3 | 970 | |
| १९/१00 | 5.0 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.40 | 120 | |
| १९/१25 | 63 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 | 180 | |
| १९/१40 | 7.0 | 10.24 | 14.04 | 20.47 | - | 29.25 | 33.64 | 38.02 | 230 | |
| १९/१60 | 8.0 | 13.37 | 18.35 | 26.75 | - | 38.20 | 43.93 | 49.66 | 300 | |
| 19/2.00 | 10.0 | 20.90 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.60 | 470 | |
| 19/2.50 | 12.5 | 32.65 | 44.80 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 | |
| 19/3.00 | 15.0 | 47.00 | 64.50 | 94.00 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 | |
| 19/3.55 | 17.8 | 65.80 | 90.27 | 131.6 | 159.9 | 188.0 | 216.3 | 244.5 | 1470 | |
| 19/4.00 | 20.0 | 83.55 | 114.6 | 167.1 | 203.0 | 238.7 | 274.6 | 310.4 | 1870 | |
| 19/4.75 | 23.8 | 117.85 | 161.6 | 235.7 | 286.0 | 336.7 | 387.2 | 437.7 | 2630 | |
