| न्यूनतम आदेश मात्रा: | 0.5km |
| कीमत: | 0.10-30.99USD/m |
| मानक पैकेजिंग: | लकड़ी का ढोल या स्टील का ढोल |
| वितरण अवधि: | 10 दिन या उससे अधिक |
| भुगतान विधि: | एल / सी, डी / ए, डी / पी, टी / टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति क्षमता: | प्रति माह 1000 किमी |

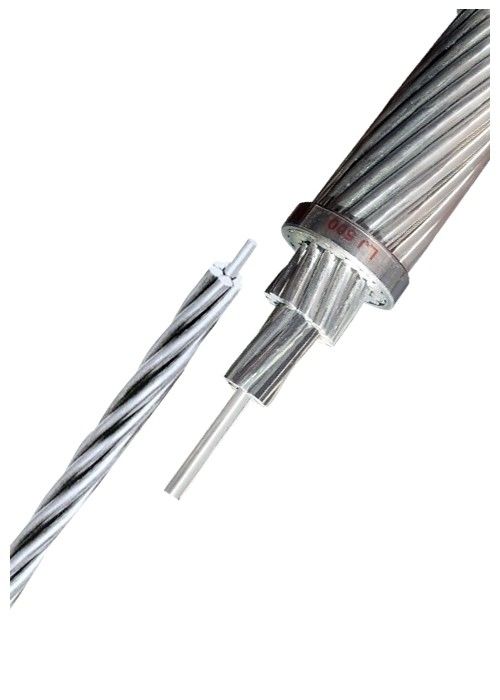

Bare Aluminium Alloy Conductors AAAC Box AAAC Redwood Resistant Corrosion
2 Standards of All Aluminium Alloy Bare Conductors AAAC
Our Bare conductor can meet or exceedthe item of cable international standards, such as:IEC 61089, BS 215 part1(AAC), BS 215 part2, BS 324201 (AAAC), DIN 48201 part 5 (AAC), DIN 48204, ASTM B231(AAC), ASTM B232(ACSR), BS EN 50182, BS EN 50183(AAAC), GB/T 1179-2008. Also we accept the OEM and the new design cable as customers.
| Type | Description | No. of Wire |
Section Area (mm2) |
| AAC | All Aluminum Conductor | 7~127 | 16~1500 |
| AAAC | All Aluminum Alloy Conductor | 7~91 | 17~1300 |
| ACSR |
Aluminum Conductors Steel Reinforced |
7~103 | 16~1250 |
| AACSR |
Aluminum Alloy Conductors Steel Reinforced |
7~103 | 16~1250 |
| ACAR/AW |
Aluminum Conductors Aluminum Alloy Reinforced |
7~103 | 16~1250 |
| ACSW/S |
Aluminum Conductors Aluminum Clad Steel Wire/Strand |
7~103 | 16~1250 |
| GSW | Galvanized Steel Wire | 3/2.64~37/4.55 | 16.41~765.99 |
3. Specification
| AAAC | EN 51082 | |||||||
| Area | No. of | Diameter | Mass per unit | Rated | DC | |||
| Code Name | wires | Wire | Cond. | length | strength | Resistance | ||
| mm2 | mm | mm | kg/km | kN | Ω/km | |||
| Box | 18.8 | 7 | 1.85 | 5.55 | 51.4 | 5.55 | 1.7480 | |
| Acacia | 23.8 | 7 | 2.08 | 6.24 | 64.9 | 7.02 | 1.3828 | |
| Almond | 30.1 | 7 | 2.34 | 7.02 | 82.2 | 8.88 | 1.0926 | |
| Cedar | 35.5 | 7 | 2.54 | 7.62 | 96.8 | 10.46 | 0.9273 | |
| Deodar | 42.2 | 7 | 2.77 | 8.31 | 115.2 | 12.44 | 0.7797 | |
| Fir | 47.8 | 7 | 2.95 | 8.85 | 130.6 | 14.11 | 0.6875 | |
| Hazel | 59.9 | 7 | 3.30 | 9.90 | 163.4 | 17.66 | 0.5494 | |
| Pine | 71.6 | 7 | 3.61 | 10.8 | 195.6 | 21.14 | 0.4591 | |
| Holly | 84.1 | 7 | 3.91 | 11.7 | 229.5 | 24.79 | 0.3913 | |
| Willow | 89.7 | 7 | 4.04 | 12.1 | 245.0 | 26.47 | 0.3665 | |
| Oak | 118.9 | 7 | 4.65 | 14.0 | 324.5 | 35.07 | 0.2767 | |
| Mulberry | 150.9 | 19 | 3.18 | 15.9 | 414.3 | 44.52 | 0.2192 | |
| Ash | 180.7 | 19 | 3.48 | 17.4 | 496.1 | 53.31 | 0.1830 | |
| Elm | 211.0 | 19 | 3.76 | 18.8 | 579.2 | 62.24 | 0.1568 | |
| Poplar | 239.4 | 37 | 2.87 | 20.1 | 659.4 | 70.61 | 0.1387 | |
| Sycamore | 303.2 | 37 | 3.23 | 22.6 | 835.2 | 89.40 | 0.1095 | |
| Upas | 362.1 | 37 | 3.53 | 24.7 | 997.5 | 106.82 | 0.0917 | |
| Yew | 479.0 | 37 | 4.06 | 28.4 | 1319.6 | 141.31 | 0.0693 | |
| Totara | 498.1 | 37 | 4.14 | 29.0 | 1372.1 | 146.93 | 0.0666 | |
| Rubus | 586.9 | 61 | 3.50 | 31.5 | 1622.0 | 173.13 | 0.567 | |
| Sorbus | 659.4 | 61 | 3.71 | 33.4 | 1822.5 | 194.53 | 0.0505 | |
| Araucaria | 821.1 | 61 | 4.14 | 37.3 | 2269.4 | 242.24 | 0.0406 | |
| Redwood | 996.2 | 61 | 4.56 | 41.0 | 2753.2 | 293.88 | 0.0334 | |
|
|
